NETGEAR ProSAFE XS716T 16-Port 10-Gigabit Smart Managed Switch - Used
£149.00
Sale price
£149.00
Regular price
Skip to product information
NETGEAR ProSAFE XS716T 16-Port 10-Gigabit Smart Managed Switch - Used
£149.00
Sale price
£149.00
Regular price
Condition: used (see photos)

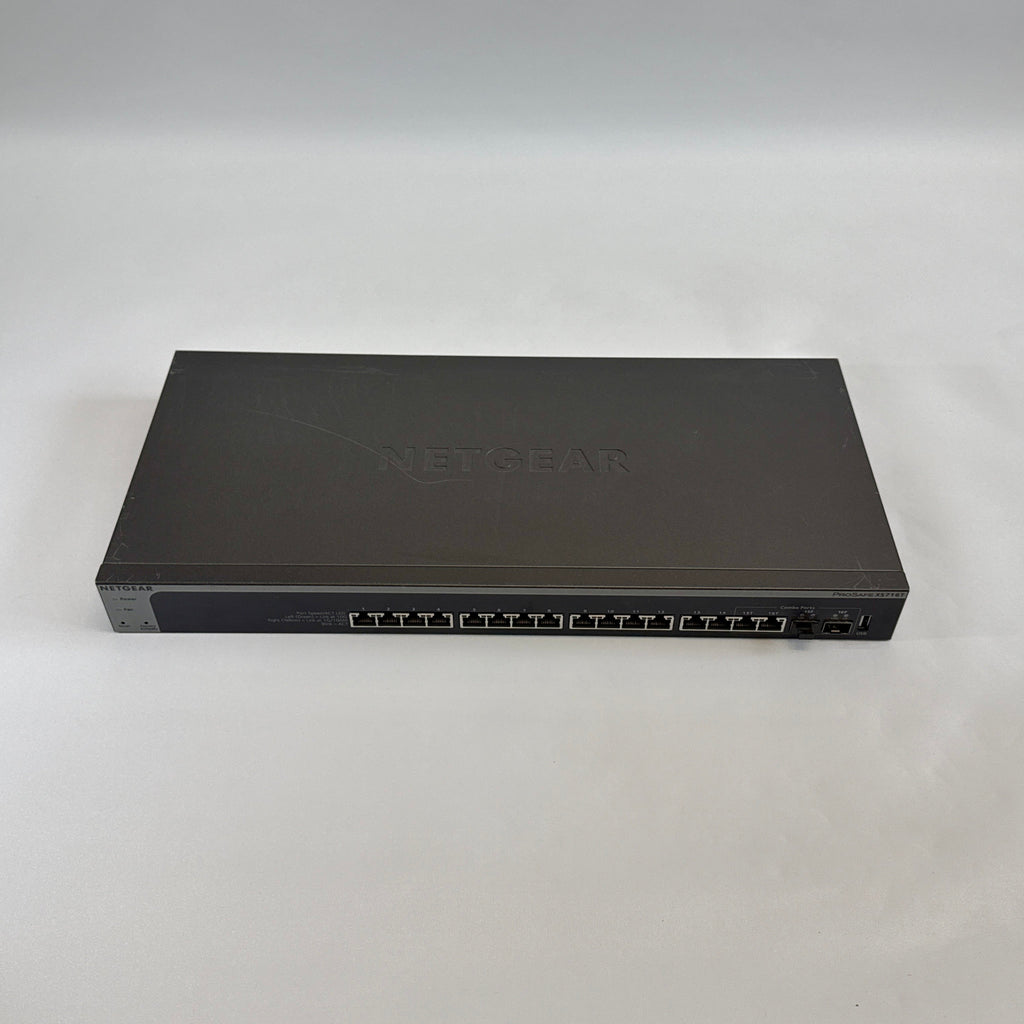

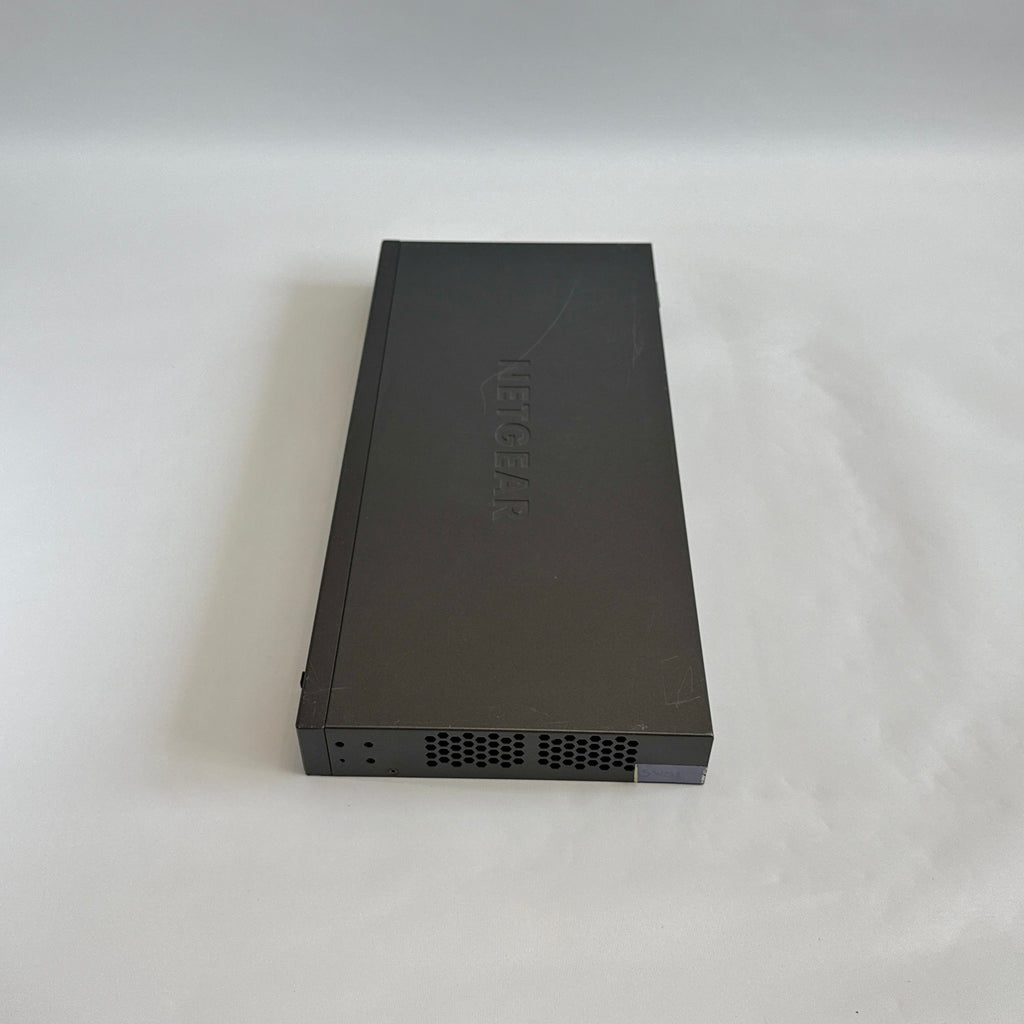

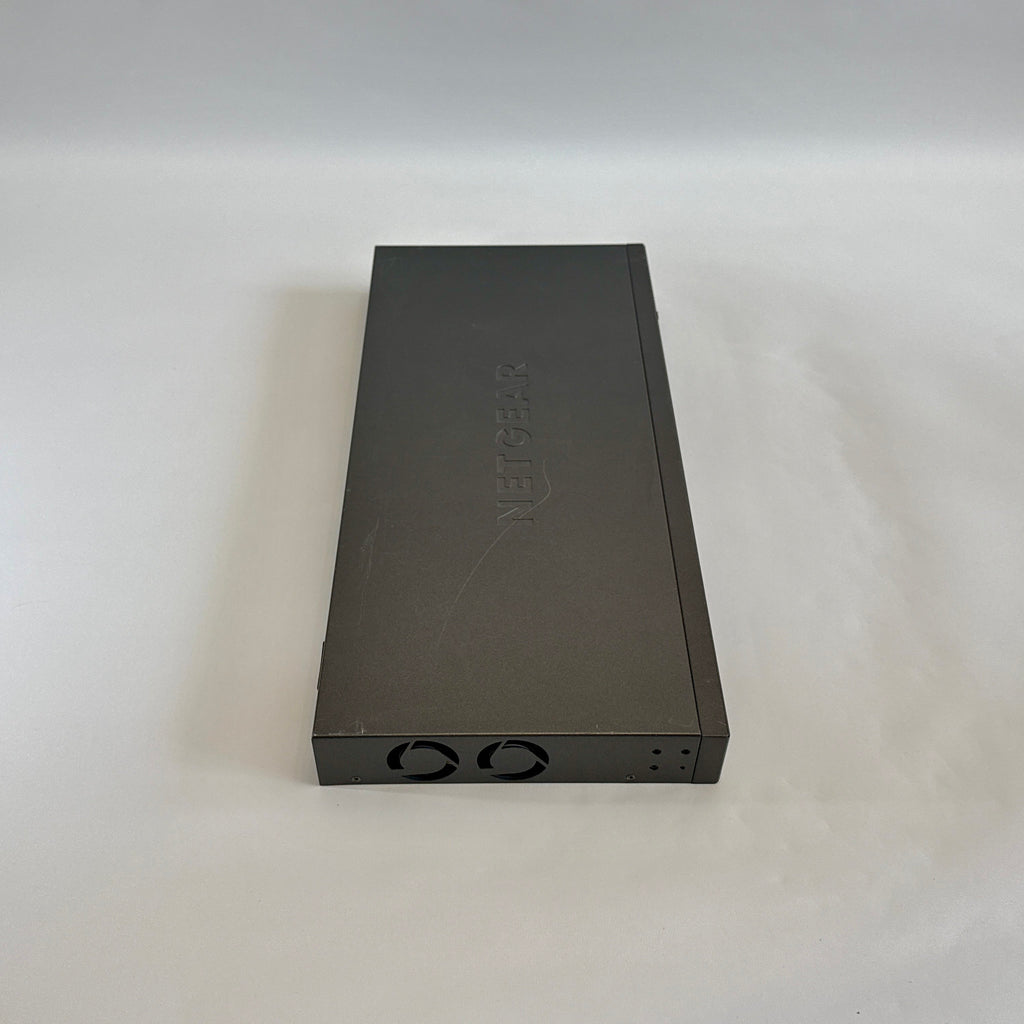

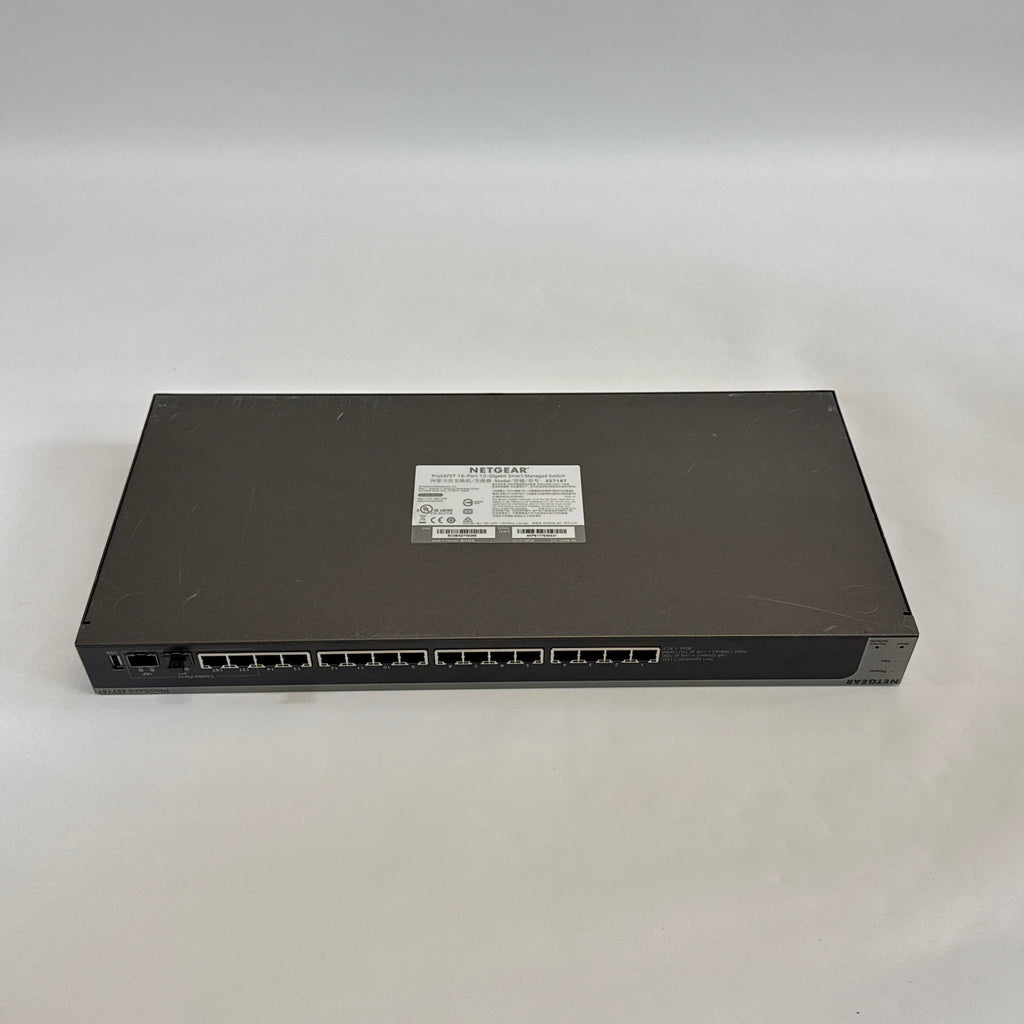

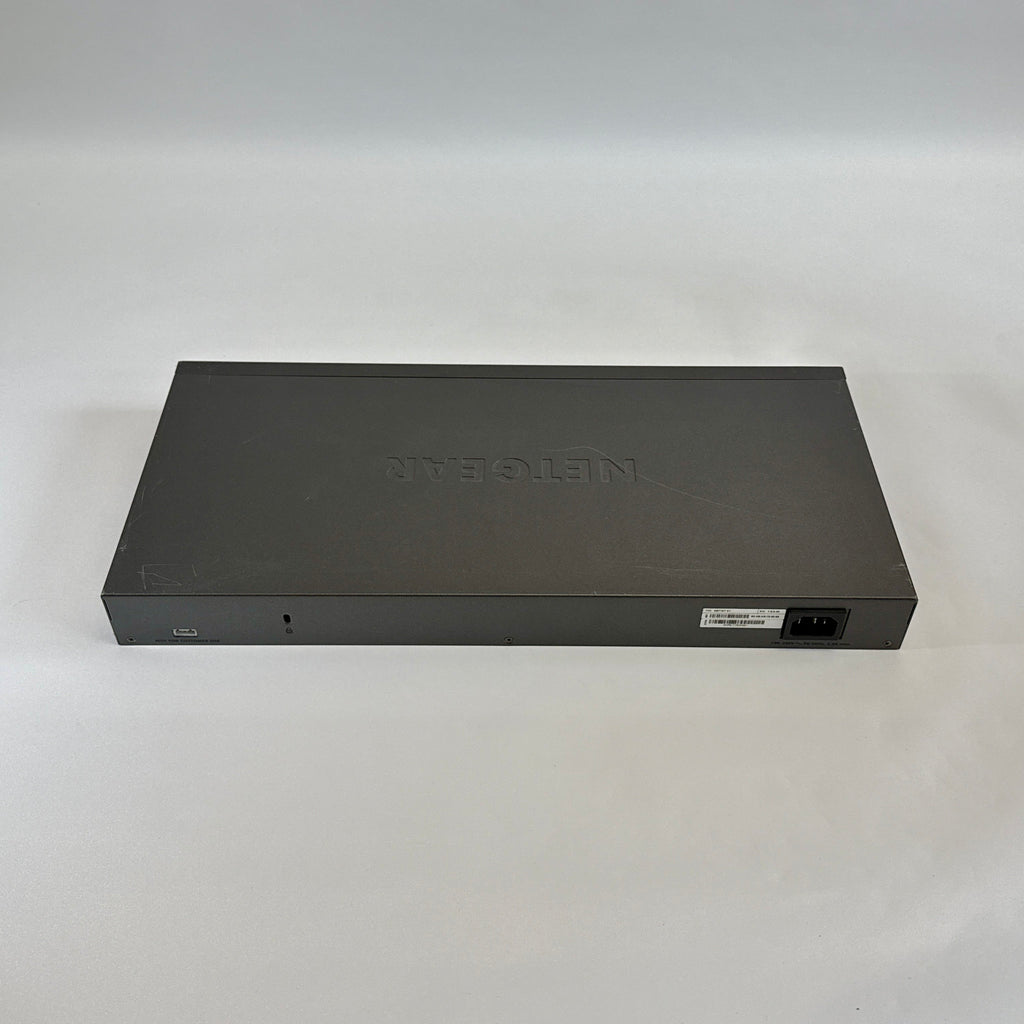

NETGEAR ProSAFE XS716T 16-Port 10-Gigabit Smart Managed Switch
The NETGEAR ProSAFE XS716T is a rack-mountable 10-Gigabit Smart Managed Switch engineered for small-to-medium businesses (SMBs). It functions as a L3 Lite device providing non-blocking 10G network bandwidth. This specific unit offers flexible copper and fiber aggregation for storage setups, virtualization, and high-density environments.
Product Identification
- Brand: NETGEAR
- Model Name: XS716T
- Part Number (MPN): XS716T-100NES
- Product Type: 10-Gigabit Ethernet Smart Managed Switch
Technical Specifications
1. Interfaces & Ports
- Total Network Interfaces: 16 Ports
- 10G Dedicated Ports: 14 x 10GBASE-T RJ45 Copper ports (100M/1G/10G adaptive speeds)
- 10G Shared Ports: 2 x Combo Ports configured as either 10GBASE-T Copper or 10GBASE-X SFP+ Fiber slots
- Port Multi-Media Constraint: Ports 15 and 16 operate as combo ports; using an SFP+ slot disables its corresponding copper pair interface.
- Management & Configuration Access: 1 x Local USB port for configuration backups, restores, and firmware installation.
2. Performance & Capacity
- Switching Fabric: 320 Gbps line-rate non-blocking bandwidth
- Forwarding Rate: 238 Mpps packet forwarding performance using 64-byte packets
-
Switch Latency:
< 2.624 µs(10GBASE-T copper),< 2.128 µs(10GBASE-X SFP+) - Internal Hardware: 600 MHz Cortex-A9 Single Core CPU, 512MB RAM, 8MB SPI + 256MB NAND Flash
- Capacity Matrices: 16K MAC table, 256 concurrent VLANs, 100 shared ACLs, 512 IGMP groups, and 738 ARP table entries.
3. Power, Cooling & Physical
- Power over Ethernet (PoE): None / Non-PoE Model
- Power Configuration: 1 x Internal fixed power supply unit (AC 100-240V, 50-60Hz)
- Cooling System: 2 x Internal, fixed cooling fans pulling front-to-back airflow
- Jumbo Frame Support: Up to 9KB frame size
- Form Factor: 1U space requirement, full 19-inch rackmount kit included
Key Software Features
- Layer 3 Lite Routing: Supports up to 32 IPv4 and 32 IPv6 local static routes for inter-VLAN management.
- Multicast & Voip Filtering: Includes IGMP and MLD snooping capabilities alongside dedicated Auto-VoIP and Auto-Video protocols.
- Network Security: Built-in 802.1X authentication, RADIUS architecture integration, and advanced time-based Ingress Access Control Lists (ACLs).
- Energy Efficiency: Implements IEEE 802.3az Energy Efficient Ethernet (EEE) standards to optimize individual port power draws.
- Management Protocols: Full browser-based Web GUI admin panel (HTTP/HTTPS) or secondary discovery using PC-Based Smart Control Center Utility.
For any questions, please contact us using the form in the contact section.
